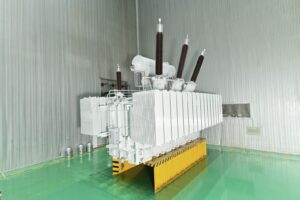

A 220kV Power Transformer is an essential component in modern power transmission and distribution systems. It is mainly used to increase or reduce voltage levels between power generation facilities, transmission networks, substations, and industrial users.

As a professional 220kV transformer manufacturer, Liye develops and supplies high-voltage transformers designed for stable operation, high efficiency, and long service life. The transformer structure mainly includes the iron core, windings, oil tank, insulating components, cooling system, and protection devices.

The 220kV high voltage transformer is widely applied in power grids, photovoltaic plants, wind power projects, energy storage systems, hydrogen production facilities, and large industrial plants.

220kV Transformer Specifications

The technical specifications of a 220kV transformer directly affect system reliability, energy efficiency, and operating performance. Different projects require customized designs according to grid conditions and load requirements.

Main Technical Parameters

A 220kV oil immersed transformer uses transformer oil as insulation and cooling media, allowing efficient heat dissipation during continuous high-load operation.

Key Features of Liye 220kV Power Transformer

High Voltage Transmission Capability

The 220kV transformer is designed for extra-high voltage transmission applications, supporting efficient electricity transfer over long distances while reducing transmission losses.

It is commonly installed in:

• 220kV substations
• Regional transmission networks
• Power generation facilities
• Large industrial power systems

Reliable Insulation and Safety Design

For high-voltage applications, insulation performance is critical. Liye transformers adopt optimized insulation structures to improve:

• Dielectric strength
• Partial discharge performance
• Short-circuit resistance
• Long-term operation reliability

Energy-Efficient Operation

Modern high voltage power transformers focus on reducing no-load losses and load losses. Optimized core design and advanced manufacturing processes help improve transformer efficiency and reduce lifecycle operating costs.

Flexible Customization

Different projects require different voltage ratios, capacities, impedance values, cooling systems, and installation conditions.

Liye provides customized transformer solutions based on:

• Grid voltage requirements
• Load capacity
• Installation environment
• Protection system requirements
• Renewable energy connection conditions

Applications of 220kV Power Transformer

Power Grid Transmission and Substations

The main application of a 220kV substation transformer is power transmission and voltage conversion in regional power networks.

It helps:

• Connect high-voltage transmission lines
• Stabilize electricity supply
• Improve grid reliability
• Support expanding power demand

Renewable Energy Projects

With the rapid growth of renewable energy, 220kV transformers are widely used in:

• Solar power plants
• Wind farms
• Energy storage stations
• Hydrogen production projects

A 220kV transformer for renewable energy must handle fluctuating power output while maintaining stable grid connection.

Industrial Power Systems

Large manufacturing facilities such as:

• Steel plants
• Chemical factories
• Mining facilities
• Large production bases

require reliable high-voltage transformers to support continuous operation.

How to Select a 220kV Transformer?

Selecting a suitable 220kV transformer supplier requires considering several technical factors.

1. Rated Capacity

The transformer capacity should match the actual load demand.

Factors include:

• Maximum power consumption
• Future expansion requirements
• Load fluctuation
• Backup requirements

An oversized transformer may increase investment costs, while an undersized transformer may affect system stability.

2. Voltage Ratio Requirements

The voltage ratio determines whether the transformer can properly connect different voltage levels.

Common considerations include:

• High voltage side
• Medium voltage side
• Low voltage output
• Grid connection requirements

3. Cooling Method

Different operating environments require different cooling solutions.

Common cooling methods include:

• ONAN (Oil Natural Air Natural)
• ONAF (Oil Natural Air Forced)

Proper cooling design helps maintain safe temperature levels during continuous operation.

4. Efficiency and Loss Performance

For transformers operating 24 hours a day, energy loss is an important selection factor.

Buyers should evaluate:

• No-load loss
• Load loss
• Operating efficiency
• Lifecycle cost

5. Manufacturer Experience and Testing Capability

A reliable 220kV transformer manufacturer should have:

• Advanced production facilities
• Professional engineering team
• Complete testing equipment
• Strict quality control system

Liye specializes in transformer R&D, manufacturing, and lifecycle management, providing transformer solutions up to ultra-high voltage levels for global power applications.

Why Choose Liye as Your 220kV Transformer Supplier?

Liye focuses on the research, manufacturing, and supply of high-voltage and ultra-high-voltage transformers.

Our advantages include:

● Complete transformer solutions covering multiple voltage levels

● Professional R&D capability for customized transformer designs

● Advanced manufacturing processes for reliable product performance

● Strict quality inspection and testing procedures

● Experience serving power grids, renewable energy, and industrial projects

Whether for a 220kV transformer for power grid, renewable energy project, or industrial application, Liye provides reliable and customized transformer solutions.

Conclusion

A 220kV Power Transformer plays a key role in modern electricity transmission systems. Choosing the right transformer requires comprehensive consideration of capacity, voltage ratio, cooling method, efficiency, and supplier capability.

With professional manufacturing experience and advanced transformer technology, Liye delivers dependable 220kV high voltage transformer solutions for global energy infrastructure projects.
